In manufacturing today, most companies are moving toward Industry 4.0. Atlas Copco’s latest torque controller aligns perfectly with Industry 4.0 allowing users to experience the latest smart connected assembly.

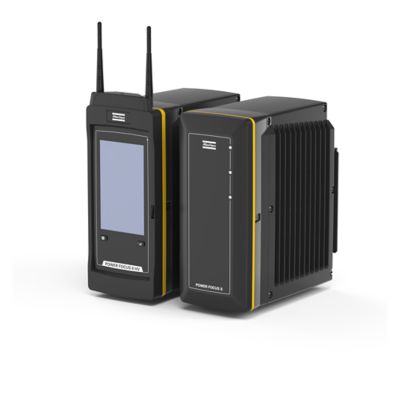

The Power Focus 8, like its predecessor, the Power Focus 6000, is the centerpiece of the PF Ecosystem. The PF8 supports multiple tools using virtual stations, offering advanced tightening strategies for better ergonomics and error-proofing, and supports software to further optimize the production process.
Updated Features
The most substantial upgrade for the PF8 Is the ability to support 20 virtual stations. That means you can operate 20 tools virtually in connection with the PF8! Some other features are:
- New radio module and antennas for enhanced communication and increased range
- Unique user experience from a new user interface
- Improved touchscreen responsiveness
- Faster 45 second boot up time
- New main processor with 8-10 times more power
- New Fieldbus M40
- Two additional PoE ports
- Increased number of tightening programs and sequences
The PF8 controller can connect and control more than a dozen tool families. This is the interface between the line and the MES system, also providing power and communication for tools and accessories.
The enhanced connectivity which allows control of up to 20 virtual stations includes dual antennas that give double the performance from the previous generation. Another beneficial feature is the three ways to connect battery tools.

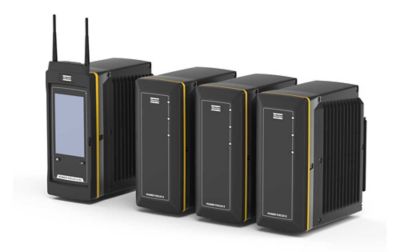

Power Focus 8 Ecosystem
The smarter sustainable tightening controller — designed for connectivity, developed for Industry 4.0.
-
6
Maximum Bluetooth Tools
-
20
Maximum Wi-Fi Tools
-
20
Maximum Tools in Access Point Mode
The virtual station is one of the core parts of Smart Connected Assembly and is the key item of the Power Focus platform. This station is the component that connects the whole system together, including tools and accessories, protocols for communication, selecting tightening programs, and data reporting. It does so by controlling the functionality that is available for each tool type and comes in different versions, depending on the needed functionality.
Power Focus 8’s updated intuitive user interface boasts a modern and optimized UI style for increased visibility in different lighting conditions, while reducing eye strain. This interface reduces set-up and configuration time, training requirements, and the need for tightening expertise. It supports different torque unit formats as well as 12 different languages.
Advanced Ergonomics
Keeping operators safe on the line leads to happier and healthier operators, an increase in product quality, improved productivity, lowered costs, and more. Start practicing good operator ergonomics by using low reaction tools supported by the PF Ecosystem. Low reaction tools help to improve operator experience and ergonomics by reducing the reaction force assumed by the operator without the need for additional hardware and reaction devices. Advanced tightening strategies are another way to improve operator ergonomics, as well as reduce errors.
To sum it up
The benefits that the Power Focus 8 features make for a faster, simpler, and less expensive rebalancing. Reduces floor space and power utilized and more simple programming. Oh, did we mention the ability to operate up to 20 tools virtually?
If you’re interested in learning more about the Power Focus 8, the centerpiece of the PF ecosystem, contact us to schedule a demo today!
