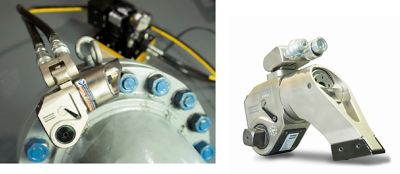

RT & RTX Series: hydraulic torque wrench + sockets and pumps & hoses

Hydraulic wrenches in RT Series offer extremely high torquing power. Excellent power to weight ratio and range of 8 models covering torque from 283 – 71180 Nm (209 - 52500 Ft. lb.) makes it the most preferred wrench in the market.

Model	Square Drive in	Torque Nm	Weight kg
RT-01	3/4	283-1885	1,9
RT-03	1	657-4379	3,9
RT-05	1-1/2	1137-7579	7,5
RT-08	1-1/2	1627-10846	11,5
RT-10	1-1/2	2343-15619	13,4
RT-20	2-1/2	4019-26791	28
RT-25	2-1/2	5266-35102	35
RT-50	2-1/2	10677-71180	48

We offer comlete range of sockets for our RT tools including metric and imperial sizes.

Model

3/4" Drive socket ( request hex size )

1" Drive socket ( request hex size )

1-1/2" Drive socket up to HEX 100mm ( request hex size )

1-1/2" Drive socket from HEX 105mm up to 150mm ( request hex size )

2-1/2" Drive socket up to HEX 100mm ( request hex size )

2-1/2" Drive socket from HEX 105mm up to 150mm ( request hex size )

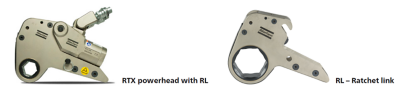

RTX Series - low profile hydraulic torque wrench

Atlas Copco RTX Series Low Profile Hydraulic Torque Wrenches eliminate problems with tight clearances. We offer comlete range of Ratchet links for our RTX tools including metric and imperial sizes.

Model	Description	Torque Nm	Weight kg
RTX-02	RTX - Power Head	348-2318	1
RL02 Link	Ratchet Link Hex size 19-60mm		1
RTX-04	RTX - Power Head	784-5227	2,2
RL04 Link	Ratchet Link Hex size 25-85mm		2,2
RTX-08	RTX - Power Head	1658-11051	4,5
RL08 Link	Ratchet Link Hex size 46-105mm		4,5
RTX-14	RTX - Power Head	2725-18168	7,5
RL14 Link	Ratchet Link Hex size 60-135mm		7,5
RTX-18	RTX - Power Head	3879-25861	11,5
RL18 Link	Ratchet Link Hex size 75-140mm		11,5
RTX-30	RTX - Power Head	6467-43114	18
RL30 Link	Ratchet Link Hex size 90-165mm		18
