G SERIES

G 7-90 screw compressor

Oil-lubricated screw compressors (7.5 to 13 bar)

Range offer:

G 7-11
G 15-22
G 30-45
G 55-90

G 7-90 screw compressors

Key technical specifications

Working Pressure bar (a)

7.4 bar(a) - 12.5 bar(a)

Capacity FAD

47.06 m³/h - 1,043.2 m³/h

Installed motor power

7.5 kW - 90 kW

Capacity FAD l/s

13.1 l/s - 290 l/s
See all technical specifications

Top Downloads

Product brochure
Oil-injected rotary screw compressors
G 2-5/G 7-11/G 15-22/G 30-45/G 55-90 (2-90 kW/3-120 hp)
Download
Download
View all Downloads
    Contact us

Description

G 7-90 oil-lubricated screw compressors

The G range brings the power and durability of an industrial screw compressor to small and medium-sized businesses. It also offers superior reliability, easy installation and quick maintenance.

Efficient compression element

Atlas Copco’s trusted rotary screw element ensures our G compressors’ high free air delivery and supreme reliability.

Delayed Second Stop
Increase your compressor’s efficiency with the Elektronikon®’s DSS. It stops the compressor’s motor whenever possible (while maintaining the desired system pressure) to minimize motor run time and energy consumption.

See more details about the G SERIES in the brochure

Download brochure

G-series screw compressors: Built to last

G 55-90
G55 screw compressor
G55 screw compressor ghost
G 55-90
G55 screw compressor
G55 screw compressor ghost

The G 7-11/G 15-22 series’ reliability, performance, efficiency, and easy operation make it the preferred compressor for small and medium-sized businesses:

The G 30-45/G 55-90 brings you outstanding sustainability, reliability and performance with a low investment cost.

G 7-22: The ideal small business compressor

  • Reliable element and motor allow for 100% continuous duty cycle, even in hot and harsh environments.
  • Optional integrated dryer ensures premium air quality.
  • Silent, low-vibration operation thanks to belt-driven element.
  • Extremely small footprint with possible placement against a wall or in a corner.
  • Delivered plug-and-play and available in multiple configurations.

G 30-90 : A robust, flexible offer

  • IE3 motor delivers premium energy efficiency and savings.
  • Thanks to its 100% duty cycle, the G 30-45/G 55-90 can operate continuously without cool-down periods.
  • Maintenance-free drive train works reliably in temperatures up to 46˚C/115˚F.
  • Elektronikon® controller offers advanced, intuitive control and monitoring.

Get a free quote from our Atlas Copco experts

Benefits

Technical benefits

Premium performance
Proprietary rotary screw element ensures high free air delivery and supreme reliability.
Continuous operation
No cool-down periods needed. Atlas Copco screw compression technology allows for a 100% continuous duty cycle.
Easy installation & maintenance
Delivered plug-and-play, the G also offers easy access for service.

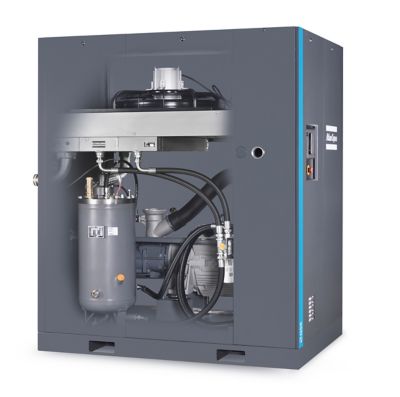

G55 screw compressors
Find out more in the brochure

Designed for businesses

The right solution
Multiple variants (floor- and tank-mounted, with or without integrated dryer) to meet your specific needs
Save space
The G 7-22’s compact footprint allows for placement against a wall or in a corner.

Specifications

Technical specification

Technical Property Value

Working Pressure bar (a)

7.4 bar(a) - 12.5 bar(a)

Capacity FAD

47.06 m³/h - 1,043.2 m³/h

Installed motor power

7.5 kW - 90 kW

Capacity FAD l/s

13.1 l/s - 290 l/s

 (60 Hz versions)
