Small mobile air compressors

Working pressure 7-12 bar (100-175 psi)
Free air delivery 2-5 m³/min (70-175 cfm)

Specifications & brochure

XAS 38, XAS 48, XAS 58-7, XAS 68-10, XAS 68-12, XAS 88-7, XAS 88-10

Applications

Best suited for abrasive blasting, blowing and powering pneumatic tools

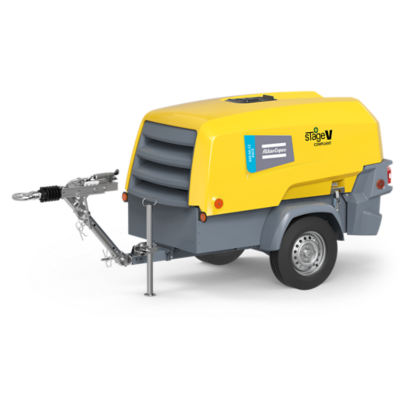

Atlas Copco XAS 88-7 mobile air compressor

Top view XAS 58-7 G with built-in generator

Using the Xc1004 controller

Atlas Copco XAS 58-7 mobile air compressor

Toughness and reliability

The perfect combination of signature Atlas Copco compressor elements and best-in-class Stage V diesel engines. Plus shock-resistant HardHat® canopy for longer lifetime and higher residual value.

Efficient transportation

Almost all product variations are below 750 kg including options, so you can tow them behind a normal passenger car without special driving license.

Variety of add-ons

With a wide range of additional equipment, you can customize your mobile compressor with air quality treatment options, extreme weather kits, built-in generator and more.

Mobile air compressors that can be towed behind a regular car

Atlas Copco small diesel air compressors are versatile and reliable partners for powering your pneumatic handheld tools, sandblasting machines and other equipment.

The shock resistant HardHat® canopy and reinforced metal frame with anti-corrosion coating not only protects inner elements, but also maintains an attractive exterior of your diesel compressor, increasing resale value of the asset.

You'll appreciate the ease of operation and transportation just as much. On top of that a wide choice of optional features is available to meet your specific needs, whatever they may be.

Stage V compliant diesel engines on board

Atlas Copco small portable air compressor with Stage V diesel engine

Our extensive range of diesel air compressors are powered by Stage V compliant engines and meet stringent European regulations. This, combined with highly efficient, in-house designed compressor elements, results in lower fuel consumption and contributes to cost savings. Furthermore, all models in this range are approved to run on HVO (Hydrotreated Vegetable Oil) and have been tested to ensure no loss in performance.

A truly mobile source of compressed air

A small Atlas Copco diesel air compressor on wheels towed behind a regular passenger car

Standard models weigh up to 750 kg, allowing to tow them behind a regular passenger car without special driver's license. Their portability enables easy transportation and maneuverability, reducing the need for specialized vehicles or heavy lifting equipment. Their compact design ensures they take up minimal space, making them ideal for limited workspaces.

Effortless maintenance thanks to clever design

A service engineer is replacing a filter on Atlas Copco's diesel compressor

With an optimized service design that includes, among other things, central drains and spin-on filters, you can service your Atlas Copco small mobile air compressor in less than an hour. The spillage free frame can contain 110 % of all fluids used in the process, so there is no risk to the environment.

Built-in air quality treatment options

Close up view of Atlas Copco portable air compressor equipped with aftercooler and water separator

Equipping your mobile air compressor with an aftercooler and water separator provides better air quality for efficient operation of pneumatic tools, abrasive blasting and painting equipment. You can also add a reheater if needed. Condensate drainage is automatic and requires minor attention. A bypass valve or non-return valve protects the aftercooler from freezing if the ambient temperature drops below zero.

Mobile air compressor with on-board generator for powering electric tools

Close up view of Atlas Copco small portable air compressor with built-in generator

An integrated generator increases the efficiency of your mobile air compressor, allowing to cover small jobsite power needs. Available in various power and voltage versions, with three outlets for quick connection. Parallel operation of the compressor and generator is allowed.

Technical specifications: choose a mobile air compressor to suit your needs

Technical data		XAS 38	XAS 48	XAS 58-7	XAS 68-10	XAS 88-7
Working pressure	bar (psi)	7 (100)	7 (100)	7 (100)	10,3 (150)	7 (100)
Free air delivery (FAD)	m³/min	2,0	2,5	3,0	3,6	5,0
Free air delivery (FAD)	cfm	70	90	110	130	175
Sound pressure @ 7m	dB(A)	72	73	70	73	73
Engine
Brand		Kubota	Kubota	Kubota	Kubota	Kubota
Model		D722	D902	D1105	V1505-CR-T	V1505-CR-T
Power at normal shaft speed*	kW	14,9	18,5	18,5	33,0	33,0
Weight and dimensions (incl. undercarriage)
Max. allowed weight	kg	<750	<750	<750	<750	<750
Max. dimensions (L x W x H)	mm	3210x1230x1240		3590x1350x1410

Mobile air compressors with PACE technology

Atlas Copco diesel air compressor with PACE technology (Pressure Adjusted through Cognitive Electronics) allows you to define the pressure while the machine regulates the flow. Setting the pressure takes just three clicks and presets can be saved for fast toggling. In this way one machine can handle the job of several fixed-pressure compressors.

Learn more about PACE technology

Technical data		XAS 68-12 PACE	XAS 88-10 PACE
Working pressure	bar (psi)	10,3-12 (150-175)	7-10,3 (100-150)
Free air delivery (FAD)	m³/min	3,6-3,3	5,0-3,6
Free air delivery (FAD)	cfm	130-115	175-130
Sound pressure @ 7m	dB(A)	73	73
Engine
Brand		Kubota	Kubota
Model		V1505-CR-T	V1505-CR-T
Power at normal shaft speed*	kW	33,0	33,0
Weight and dimensions (incl. undercarriage)
Max. allowed weight	kg	<750	<750
Max. dimensions (L x W x H)	mm	3590x1350x1410

Download the brochure

Small mobile air compressors - English 19.5 MB, PDF

More information

Check out these videos to learn more about Atlas Copco small mobile air compressors

Reliable partner, ready for action

Ease of operation and maintenance

Leverage the power of digital capabilities
