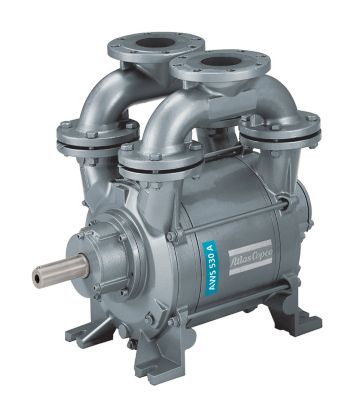

Atlas Copco Single Stage Liquid Ring Vacuum pump
Atlas Copco’s range of single stage liquid ring vacuum pumps are ideal for pumping either dry or wet gases, with a high tolerance to liquid carryover, especially in condensable processes. Our single-stage liquid ring vacuum pumps feature a high-efficiency impeller design and state-of-the-art compression technology to achieve reliable and efficient vacuum performance from atmospheric pressure down to the ultimate pressure of 30 mbar(a).
How does a Single Stage Water ring vacuum pump work?
The single stage liquid ring vacuum pump working principle is as follows, by keeping water as a seal liquid.
To produce vacuum in a single stage water ring vacuum pump, a multi-blade impeller on a shaft is positioned eccentrically in a cylindrical housing that is partially filled with sealing liquid. As the shaft turns, a liquid ring is created by the centrifugal force generated by the rotating impeller. This force holds the liquid ring against the inner wall of the pumping chamber. Since the impeller is located eccentric to the pumping chamber, the depth of entry of the blades into the liquid ring decreases and increases as the impeller rotates. This creates increasing cell volume on the inlet port side, creating vacuum.
The key features of Atlas Copco AW series of Single Stage Water Ring Vacuum Pump are
1. State-of-the-art bearing design allowing for reduced clearances and improved suction performance
2. Application flexibility through modularity. Our pumps are available in three modules:
- Once-through
- Partial recirculation
- Total recovery
3. High reliability for a long lifespan
4. Mechanical seals as standard
5. Robust, reliable, low maintenance construction
6. Up to 95% reduction of water consumption with total recovery
7. Low noise for a comfortable working environment
8. Optional materials of construction: cast iron, stainless steel fitted, stainless steel complete.
| AWS Single Stage Liquid Ring Vacuum Pump @ 50Hz | Metric |
| Nominal Capacity | 170-5400 m3/h |
| Ultimate Pressure | 30 mbar(a) |
| Nominal Installed motor | 5.5-132 kw |
Intelligent Liquid Ring Vacuum Pump- Atlas Copco LRP VSD+
The LRP 700-1000 VSD+ series of single stage liquid ring vacuum pump is built on a heritage of reliability and resilience. Inspired by a proven Hick Hargreaves design that draws on over 150 years of engineering excellence and infusing Atlas Copco innovation – the LRP VSD+ series is truly an innovative vacuum pump.
The multiple features engineered within the LRP VSD+ series include-
1. Horizontal serviceability, no need to position the pump vertically
2. No oil, no regular filter exchange
3. Mechanical seals – eliminate leaking gland sealing
4. Lantern flange arrangement – automatic alignment of the motor
5. Removable heat exchanger with flexible piping for continued operation
6. Ease of cleaning the vessel by convenient access port.
7. VSD Inverter for vacuum set point control.
8. VSD Inverter for water circulation pump control.
9. Automatic Seizure Prevention and anti-cavitation algorithm
10. Onboard Advanced microprocessor controller.
The typical applications of Atlas Copco Single Stage Liquid Ring Vacuum Pumps are-:
- Food Processing:
- Milk evaporation
- Fruit processing
- Bottling
- Poultry and meat evisceration
- Plastic Extrusion
- Rubber vulcanization and forming
- Pulp and Paper
- Mining
- Drying
- Sterilization
- Evaporation
- Expanded polystyrene forming
- Filtration
- Conveying
Atlas Copco manufactures a reliable range of single-stage liquid ring vacuum pumps that caters to various industrial applications. Click here to contact our application experts.
